The Impact of Heat Treatment on the Dimensional Stability of Machined Parts

In the realm of precision engineering, the geometric integrity of custom CNC machined parts is paramount. Heat treatment processes like annealing and quenching are very important. They help control the dimensional stability of machined parts. Microstructure changes and stress relief affect how materials act during finishing. At AFI Parts (www.afiparts.com), our engineering team frequently encounters the complex interplay between severe plastic deformation induced by cutting tools and the subsequent thermal cycles required to hit specific mechanical properties. Thermal stress relief methods lower tensile residual stresses. This helps keep accuracy and mechanical properties. Residual stresses and microstructure are connected. Changing one will change the other. So, it is important to control them well to stop deformation.

Key Takeaways

• Pick the best heat treatment for each part. This helps the part keep its shape and strength.
• Watch cooling rates closely. This stops bending or cracking when heating parts.
• Use annealing to lower stress inside the part. This makes machined parts more stable.
• Quenching makes parts harder. But it can also make them brittle. Always temper after quenching to lower this risk.
• Control heating and cooling steps. This stops uneven temperatures that can bend parts.
• Check parts before and after heat treatment. This helps you find size changes early.
• Use new technology and modeling to make heat treatment better. This improves the quality of parts.
• Keep materials clean and ready. This helps heat treatment work well and gives good results.

Heat Treatment and Machined Parts

Internal Stress Sources

Understanding the genesis of dimensional instability requires a deep dive into the macroscopic and microscopic stress tensors introduced during the manufacturing lifecycle. Machined parts can have stress inside after being made.

Machining-Induced Stress

These stresses happen because of the force used to cut and shape. During CNC milling or CNC turning, the interaction between the cutting edge and the workpiece generates primary, secondary, and tertiary shear zones. When a tool moves, it pushes and pulls the metal. This makes the inside of the part change shape. If the tool removes more material from one spot, the balance changes.

In a typical orthogonal cutting model, the severe plastic deformation near the surface leads to a highly localized strain field. Depending on the rake angle, feed rate (f), and depth of cut (a_p), the superficial layer (often the top 10㎛ to 100㎛) may exhibit significant compressive or tensile residual stresses. The part can bend or twist if this happens. These changes can make the part lose its correct size. If an aggressive roughing pass leaves behind an unbalanced residual stress profile, the subsequent removal of material during finishing operations will cause the macroscopic stress equilibrium to shift, leading to immediate geometric distortion (often observed as bowing or warping upon release from the machining fixture).

Thermal Effects

Heat from machining also causes stress inside parts. The mechanical work performed to overcome the shear strength of the metal is almost entirely converted into thermal energy. The tool and the workpiece rub together and get hot. While ideally, 80% of this heat is carried away by the chip, the reality of high-speed machining dictates that a significant thermal gradient (∇T) penetrates the workpiece surface.

Some metals, like stainless steel and titanium do not spread heat well. This means some spots get hotter than others. For instance, Titanium Ti-6Al-4V has a thermal conductivity (k) of only ≈6.7W/(m·K), compared to Aluminum 6061 at ≈167W/(m·K). Consequently, localized surface temperatures can exceed 600°C during aggressive titanium machining without optimal high-pressure coolant. When the part cools down, the hot and cool spots shrink differently. This traps stress inside the part. Over time, these stresses can make the part bend or change shape.

Note: Internal stresses can upset the balance inside materials like Nylon 66. This can make the part bend or change size, especially if the shape is complex or the walls are thick and thin in different places. In both metals and engineering plastics, anisotropic thermal expansion coefficients combined with varying wall thicknesses guarantee non-uniform cooling rates, exacerbating the distortion risk.

Microstructure Changes

Heat treatment is important for changing the internal structure of machined parts. The microstructure is how the grains and phases are arranged in the metal. Heat treatment lets engineers control grain size, phase mix, and stress inside. At the atomic level, residual stresses are accommodated by dislocations within the crystal lattice.

The table below shows how heat treatment changes properties and stability:

Processes like annealing and quenching change the inside and stress in different ways:

• Annealing heats the part, holds it, then cools it slowly. This makes grains bigger and softer and lowers stress inside. The part bends less and is easier to shape.
• Quenching heats the part and cools it fast. This makes a hard, fine structure called martensite. Fast cooling adds more stress, which can make the part bend or crack.
• The inside structure changes how hard, tough, or bendy the part is. Martensite makes the part harder but less bendy. Pearlite and bainite make the part tougher and let it stretch more before breaking. By picking the right heat treatment, engineers can make parts that keep their shape better.

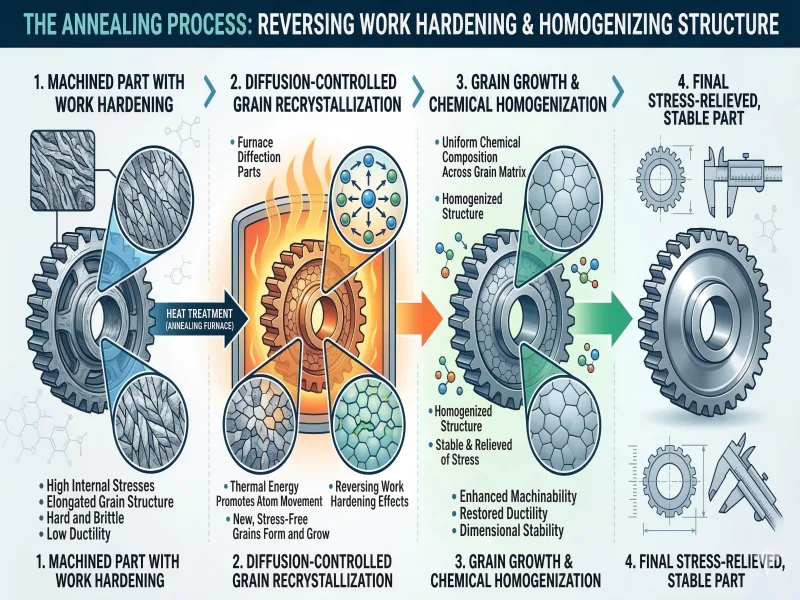

Annealing Process Overview

What is Annealing?

Annealing is a heat treatment that makes machined parts better. It helps lower stress inside and makes the part more stable. Fundamentally, it is a diffusion-controlled process utilized to reverse the effects of work hardening, enhance machinability, and homogenize the chemical composition across the grain matrix.

The steps in annealing must be done for good results:

1. Preparation – Clean the part to get rid of oil or dirt. Residual coolants or cutting fluids containing sulfur or chlorine can cause intergranular corrosion if baked into the surface.
2. Loading into the furnace – Put the parts in the furnace so that the heat spreads evenly. Proper fixturing or stacking on high-temperature alloy grates is necessary to prevent creep deformation under the part’s own weight at elevated temperatures.
3. Heating – Raise the temperature slowly to stop sudden changes. A ramp rate of 50°C to 100°C per hour is typical for thick-walled components to minimize thermal gradients (∇T) between the core and the surface.
4. Holding (Soaking) – Keep the part at the right temperature for a set time. A standard engineering rule of thumb is one hour of soak time per inch of maximum cross-sectional thickness.
5. Cooling – Cool the part at a certain speed. Full annealing cools slowly, but some methods cool faster. Often, cooling is strictly controlled at ≤ 20℃/hour inside the furnace until the part drops below the critical transformation temperature.
6. Inspection – Check the part with tests to see if it worked. Verification usually involves Rockwell or Brinell hardness testing and coordinate measuring machine (CMM) dimensional verification.

Doing these steps helps make sure the parts turn out better every time.

Microstructure After Annealing

Grain Growth

The inside of metals changes during annealing. At first, new grains form between fiber bands. The annealing process is divided into three distinct metallurgical stages: recovery, recrystallization, and grain growth. During recovery, internal strain energy is relieved without significant changes to grain shape. As it gets hotter, the ribbon shapes go away, and grains become rounder. This is recrystallization, where strain-free equiaxed grains nucleate.

If the temperature goes up more, the grains get bigger. This grain growth occurs to minimize the total grain boundary area, which represents a high-energy thermodynamic state.

The table below shows what happens at different temperatures (assuming a standard medium-carbon steel for reference):

Careful heating, soaking, and cooling help make the grain structure better. This gives the part stronger and better qualities

Ductility and Hardness

Annealing makes the grains finer, so the part bends more and is less hard. This makes it easier to cut and less likely to break. By reducing the yield strength (σ_y) and maximizing the percent elongation and reduction of area (standardized via ASTM E8 tensile testing), the material’s machinability index skyrockets. The process also lets atoms move, which lowers stress inside and makes the part more flexible. Cooling the right way spreads the grains out evenly, which helps the part last longer.

Stress Relief Benefits

Annealing helps remove stress inside the part. This stops bending, cracking, and twisting after machining. When fabricating large, asymmetric custom metal parts, the removal of up to 90% of internal residual stresses is not just an optimization; it is a strict geometric necessity. It is very important for parts that need to be very exact.

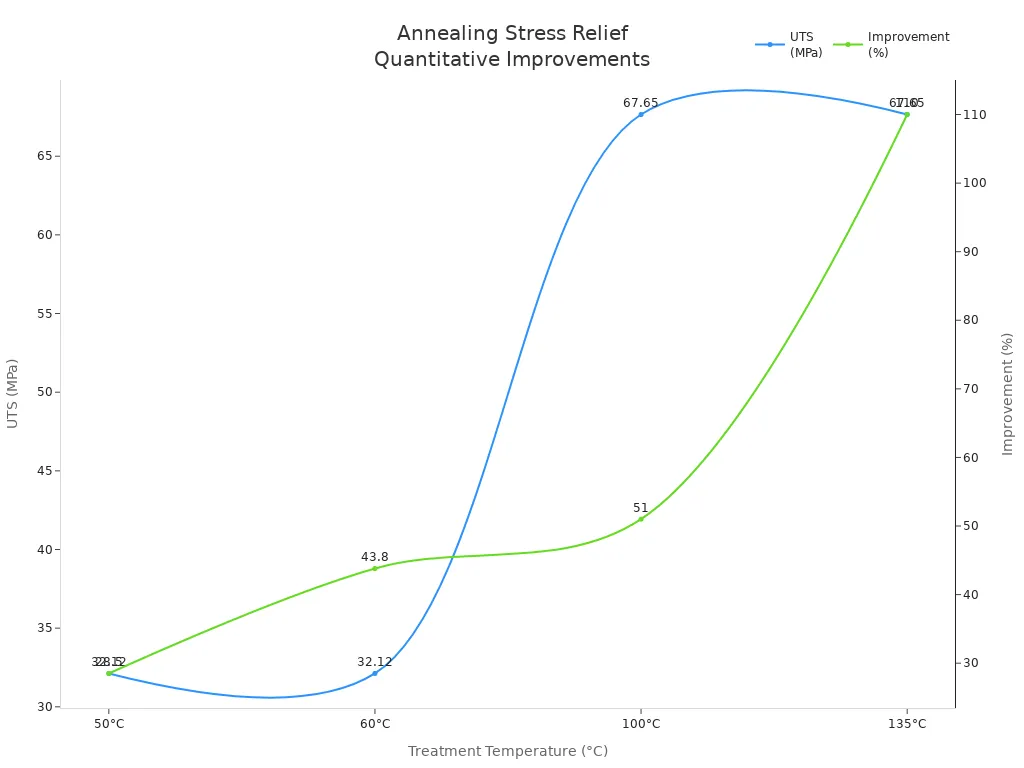

The chart below shows how strength and improvement change with different annealing temperatures:

The data shows that higher annealing temperatures can cut bending by half compared to untreated parts. This helps the part keep its shape and work well when used.

Tip: Using an annealing mold can help keep the part’s size. It can lower changes in length and thickness by up to 94.8% compared to other ways. In aerospace applications, engineers often utilize precision-machined Invar or graphite fixtures to constrain the part during the thermal cycle.

Quenching and Deformation Risks

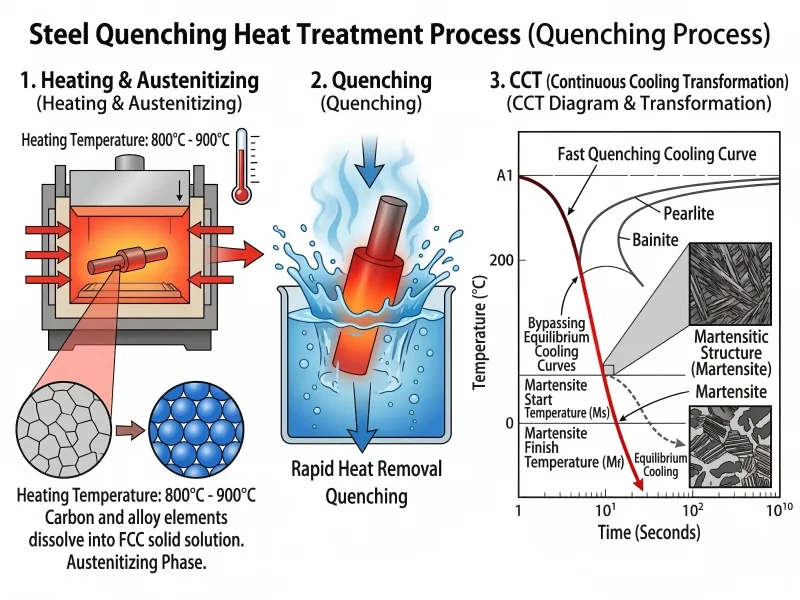

What is Quenching?

Quenching is a heat treatment that changes how parts act. It is the deliberate, rapid extraction of thermal energy designed to bypass the equilibrium cooling curves depicted on a Continuous Cooling Transformation (CCT) diagram. First, steel is heated above its critical temperature. This is usually between 800°C and 900°C. This austenitizing phase dissolves carbon and alloying elements into a face-centered cubic (FCC) solid solution.

After heating, the part is cooled very fast in water, oil, or air. Fast cooling makes the inside of the metal hard but also brittle.

Here are the main steps for quenching:

1. Heat the part above its critical temperature.
2. Cool the part quickly in water, oil, or air.
3. Sometimes, reheat the part to a lower temperature and cool it again. This step is called tempering and helps make the part less brittle.

The cooling method changes how the part turns out. The heat transfer coefficient ($h$) of the fluid dictates the critical cooling rate. Water cools fastest and makes the part very hard. But it can also cause more bending or cracking. The high latent heat of vaporization of water causes a severe vapor blanket stage, followed by violent nucleate boiling, leading to immense thermal shock. Oil and air cool more slowly, so there is less cracking and shape change. Advanced manufacturing facilities often use polymer quenchants (such as polyalkylene glycol – PAG) to dynamically tailor the cooling rate.

Microstructure After Quenching

Hardness Increase

Quenching makes the part much harder. It forms a structure called martensite inside the steel. Martensite is a supersaturated, body-centered tetragonal (BCT) solid solution of carbon in iron. Martensite is very hard. If the steel has more carbon, it can get even harder, but only up to a point. A 1045 steel might reach 55 HRC, while a high-carbon D2 tool steel can hit 62+ HRC. This hardness is good for tools and parts that need to last a long time.

Brittleness and Distortion

Quenching does not just make things hard. It also makes the metal more brittle. This means it can break more easily if bent. The massive accumulation of dislocations and trapped carbon atoms severely limits atomic slip planes. If the part is not tempered after quenching, it can snap under stress. The inside of the metal is not as tough, so cracks can start and grow.

The table below shows how annealing and quenching change the inside of the metal:

Managing Quench-Induced Deformation

Quenching can make parts change shape or even crack. This can happen if the part heats or cools unevenly. It can also happen if the part is not put in the furnace the right way. Cooling too fast can also cause problems. If the stress from cooling is too high, the part can crack. When thermal contraction stresses combine with the expansion stresses of the martensitic transformation, the resulting principal stress can easily exceed the ultimate tensile strength of the cold material, resulting in a catastrophic quench crack.

Engineers use different ways to stop these problems:

• Lower the quenching temperature to lower stress. (Operating closer to the lower critical temperature Ac₁).
• Heat the part slowly or preheat it to spread the heat evenly. Step-heating avoids inducing massive thermal gradients during the austenitizing phase.
• Hold the part in place so it does not move. Press-quenching or die-quenching mechanically forces the part to maintain its geometry while the microstructure transforms.
• Pick the best quenching method and cooling medium for the part’s shape. Moving from water to a fast-quench oil, or utilizing martempering (interrupting the quench in a molten salt bath just above the M_s temperature).
• Make parts with even shapes to help them cool the same way. Designing out sharp internal corners, deep blind holes, or massive transitions between thick and thin cross-sections.
• Use steels that do not change shape easily for important parts. Air-hardening tool steels (like A2 or D2) undergo a much gentler cooling curve, drastically minimizing distortion compared to water-hardening (W1) or oil-hardening (O1) variants.

Tip: Always think about the part’s shape, size, and material before quenching. Careful steps help keep parts strong and the right size.

Annealing vs. Quenching Effects

Stress Relief Comparison

Annealing and quenching change the inside of metals in different ways. Annealing helps lower stress inside and makes CNC machined parts more stable. Quenching makes metal harder and stronger, but it can add new stress that might bend the part.

The table below shows the good and bad sides of each process:

Annealing heats and cools metal slowly so atoms can move and settle. This helps get rid of stress from cutting and shaping. Quenching cools metal fast and locks atoms in place, making it hard. But this can trap stress inside. If not fixed, these stresses can bend the part later.

Tip: Cooling slowly during annealing stops new stress from forming. It also helps grains grow evenly. If cooling is done wrong, the benefits from heating can be lost. Opening the furnace door too early exposes the part to room-temperature air drafts, inducing superficial tension.

Impact on Machined Parts

Picking annealing or quenching changes how cnc machined parts turn out. Annealing makes metal easier to shape and cut. It also helps stop bending by making grains better and lowering work hardening. Quenching makes metal tougher, which is good for tools and strong parts. But quenching can add stress that might bend or crack the part if not tempered.

The table below shows how these processes change the size accuracy:

Annealing helps grains grow evenly and lowers bending risk. Quenching can cool unevenly, causing hard spots and bending. Good control of the process keeps cnc machined parts the right size. Work hardening happens when metal is cut or shaped, making it harder and less bendy. Annealing fixes work hardening, so the part is easier to cut and less likely to bend. Quenching makes work hardening worse, which helps with wear but can hurt size accuracy.

Choosing the Right Process

The best heat treatment depends on the metal, the design, and how the CNC machined part will be used.

The table below shows what to think about when picking annealing or quenching:

The type of metal and how it will be used matter a lot. The table below shows how heat treatments change metal and where they are used:

Engineers must think about bending risk, work hardening, and keeping the right size. For cnc machined parts that need to be exact and easy to cut, annealing is usually best. For parts that need to be strong and last long, quenching works better, but tempering is needed to stop bending and control work hardening.

Note: Always pick the heat treatment that fits the metal and how the part will be used. This helps cnc machined parts work well and keep their shape for a long time.

Practical Steps for Dimensional Stability

Heat Treatment Selection

Picking the right heat treatment helps parts keep their size and shape. Engineers need to think about how the part is made, what it is made from, and how it will be used. Evaluating the Carbon Equivalent (CE) formula for steel components is an essential prerequisite step for predicting hardenability and cracking risk.

The table below gives tips for choosing heat treatment methods that help control size:

Engineers should match the cooling method to the part’s thickness and shape. Cooling too fast can make the part bend. Slow cooling helps the part stay the right size. Normalizing and tempering make the part stronger and less likely to bend. Stress relief is important for parts that must be very exact.

Process Optimization

Making the process better helps stop parts from changing shape after heat treatment. Engineers can follow these steps to get good results:

• Material Selection: Pick the best material and make sure it is stress-relieved. This helps the part keep its shape. Requesting “stress-relieved” condition (e.g., Aluminum 6061-T6511) directly from the mill provides a stable foundation.
• Thermal Routing: Use the right heat treatment. Stress relief heat treatment lowers stress and makes the part stronger.
• Machining Parameters: Set the right machining rules. Use sharp tools and the best feed rates to lower cutting force. Maintaining a positive rake angle and managing tool wear limits the depth of the plastically deformed layer.
• Workholding: Hold the part tight with good fixtures. This keeps the part from moving during machining and cooling. Applying equalized clamping pressure prevents inducing elastic deformation before the cut even begins.
• Toolpath Strategy: Plan the order of machining. Start by removing extra material before finishing. A classic high-precision methodology is: Rough Machine → Thermal Stress Relief → Semi-Finish → Final Finish.
• Thermal Management at the Spindle: Control the temperature when machining. Use coolants to keep the part from getting too hot. High-pressure, through-spindle coolant (TSC) systems evacuate chips and flood the shear zone immediately.

Each step helps control how the part cools and makes it stronger. Good fixtures and smart machining steps keep the part in place while it cools. Using coolants keeps the temperature even and stops sudden size changes.

Tip: Always check how fast the part cools and change it if needed. Cooling evenly is the best way to stop bending and keep the size right.

Monitoring Dimensional Changes

Watching for size changes is important for quality. Modern Quality Assurance (QA) labs rely on rigorous metrology to validate the physics of heat treatment. Engineers use thermomechanical analysis (TMA) to see how a part changes size during heat treatment. TMA checks how much a part grows or shrinks when it gets hot or cold. This quantifies the exact Coefficient of Thermal Expansion (CTE), α. This helps find problems early and keeps parts the right size.

Other ways to watch for changes include:

• Measure the part before and after heat treatment.
• Use TMA to see if the part grows or shrinks during heating and cooling.
• Write down all the data to find patterns and make the process better next time.

TMA is good for materials that cannot change size much, like those in printed circuit boards. By watching changes during cooling, engineers can fix the process to keep the part strong and the right size.

Note: Checking parts often helps find problems early. It also gives information to make cooling and heat treatment better for new projects.

Challenges and Solutions

Troubleshooting Deformation

Parts can change size during heat treatment. This can make them bend, twist, or crack. Engineers need to find the problem fast to keep the parts good. Root cause analysis typically centers around the intersection of metallurgy, fluid dynamics in the quench tank, and mechanical fixturing. Some common problems are wrong calibration, unstable pressure, and mixing up process steps. These issues can waste material or ruin parts.

The table below lists problems and how to fix them:

If a part bends or cracks, check the calibration first. Sensors can show if pressure drops or leaks. Automation helps keep steps in the right order. Dirty materials may not work well with heat. Always check materials before starting. For thick or thin parts, change the heating and cooling to fit the shape. Clean parts help heat spread and stop problems. Learn about the material to guess how it will act.

Tip: Write down every step and result. This helps find problems and fix them faster.

Preventative Measures

Engineers can stop bending before it happens. Good planning and careful work help a lot. Moving from reactive troubleshooting to proactive engineering requires systemic integration.

Here are some smart steps:

• Calibrate machines before each batch.
• Use sensors to watch pressure during heat treatment.
• Automate steps to keep the order right.
• Pick clean materials with known properties. Requesting mill test reports (MTRs) ensures the chemistry matches the intended heat treat recipe.
• Change heating and cooling for each part’s size and shape.
• Clean every part before heating.
• Test small samples to learn about the material. Sacrificial “coupons” should accompany critical aerospace components through the entire thermal cycle for destructive mechanical testing.
• Train workers often spot problems early.
• Use checklists so nothing is missed.
• Look at old results to make new batches better.

Train workers often spot problems early. Use checklists so nothing is missed. Look at old results to make new batches better.

Note: It is easier to stop problems than to fix them. Careful setup and watching keep parts strong and the right size. By doing these things, engineers waste less, save time, and make sure every part is good.

Future Trends in Heat Treatment

Technology Advances

New technology is changing how engineers work with machined parts. Industry 4.0 integration has fundamentally elevated thermal processing. Modern furnaces have sensors that watch temperature and time. This helps keep each part the same. Supervisory Control and Data Acquisition (SCADA) systems monitor atmospheric carbon potential in real-time. Some systems use computers to change heat while working. Engineers can change a part’s properties during the process.

Robots now move parts in and out of machines. This makes each batch more alike. Consistency in transfer time from the austenitizing furnace to the quench tank is highly critical for capturing the desired microstructure before it shifts on the TTT diagram. Many companies use old job data to make future parts better.

Laser heat treatment is a new way to heat parts. Lasers heat just the surface of a part. This changes only the outside, not the inside. It helps keep the part stable. Laser transformation hardening provides zero global distortion, keeping the core tough while achieving extreme localized surface hardness (e.g., on a gear tooth profile). Induction heating uses magnets to heat metal fast. Engineers get more control over the part’s properties. These new methods help make better parts and waste less.

New Materials

Engineers use new materials with special properties now. Traditional low-carbon steels are frequently replaced by advanced high-strength steels (AHSS) and exotic superalloys. Alloys with nickel, titanium, or chromium can withstand high heat. Inconel and Hastelloy grades, for instance, rely on complex solutionizing and precipitation-aging cycles. These materials keep their properties after many heat cycles. Some plastics and composites also undergo heat treatment. This makes them better for cars and planes.

A table below shows some new materials and their properties:

Engineers choose materials for each job based on what is needed. New materials help parts last longer and work better.

Predictive Modeling

Predictive modeling uses computers to guess how heat treatment will change a part. Before cutting a single chip, engineers utilize Finite Element Analysis (FEA) integrated with thermodynamic simulation software (like DEFORM or SYSWELD). Engineers put in data about the part and process. The computer shows how properties change when heating and cooling. By calculating Fourier’s law of heat conduction alongside solid-state transformation kinetics, models predict exact volumetric variations.

This helps engineers plan the best way to get good properties. Some models use artificial intelligence. These systems learn from old data to guess new part properties. Machine learning algorithms can adjust the predicted quench rates based on historical deviations in factory humidity or quenchant degradation. This saves time and money. Engineers can test ideas on the computer before making real parts. This means fewer mistakes and better results.

Note: Predictive modeling helps engineers control every part’s properties. It makes meeting strict quality rules easier. In the future, engineers will use more data and smarter tools. This will help them control machined parts with even better accuracy.

Annealing and quenching both change how machined parts keep their shape. Annealing helps lower stress inside the part. This makes the part more stable and less likely to bend. Quenching makes the part harder, but it can also make it bend or crack.

Key takeaways for engineers:

• Choose the best heat treatment for each part.
• Watch how fast the part cools to stop bending.
• Try new tools and use data to get better results.

Learning about new heat treatment methods helps engineers make parts that last longer and work better.
