Can you make gears on a lathe and how does it work

You might wonder, can you make gears on a lathe? Yes, you can. Many DIYers and small shop owners use a lathe for gear making. With the right setup and some knowledge, you can create useful gears for your projects. Machining offers a flexible way to shape metal or plastic into the gear you need. You do not need a factory to get started.

Key Takeaways

• You can make gears on a lathe with the right setup and tools. A screw-cutting metal lathe is essential for this task.
• Start with simple spur gears. They are the easiest to cut and help you learn the basics of gear making.
• Use a dividing head or indexing plate to ensure each gear tooth is evenly spaced. This is crucial for smooth operation.
• Choose the right material for your gears. Brass is great for beginners, while steel is strong but harder to cut.
• Always measure your workpiece before and after cutting. This helps you avoid mistakes and ensures accuracy.
• Keep your tools sharp and clean. Dull tools can ruin your gear and make cutting harder.
• Practice careful planning and setup. A well-prepared lathe leads to better results and smoother cuts.
• Consider advanced machining options for complex gears. CNC lathes can achieve tighter tolerances and better finishes.

Can You Make Gears on a Lathe?

The Basics

You might ask, can you make gears on a lathe? The answer is yes. Many people use a lathe to cut gears for machines, tools, or even hobby projects. You do not need a giant factory or expensive equipment. With the right setup, you can cut gears on a lathe in your own workshop.

To get started, you need a screw-cutting metal lathe. This type of machine lets you control the movement of the cutting tool and the workpiece. A South Bend 9″ lathe is often seen as the minimum size for gear cutting. The lathe must be strong enough to handle the size of your gear blank. If you want to cut a 1-inch diameter thread in steel, you will need a sturdy machine. Most small, low-cost lathes will not work for this job.

Tip: Before you begin, check that your lathe can hold the gear blank and has the right attachments for gear cutting. This will help you avoid mistakes and wasted time.

Machining is a flexible way to make gears. You can use it to shape metal or plastic into the exact gear you need. This method works well for many types of gears, especially if you want to make just a few.

When It’s Practical

You will find that gear cutting on a lathe is most practical in certain situations. Here is a table to help you see when this method works best:

If you only need a few gears, using a lathe saves time and money. You do not have to set up a big machine or wait for a factory order. You can make the gear you need right away. This is also helpful if you want a special gear shape or size that is hard to find.

You can also use a lathe to make replacement gears for old machines. Sometimes, you cannot buy the right part anymore. Making your own gear on a lathe solves this problem.

Note: Gear cutting on a lathe is best for spur gears and simple shapes. More complex gears, like helical or bevel gears, may need special machines or tools.

Machining gives you the power to create custom parts. You can fix broken machines, build new projects, or learn new skills. With practice, you will get better at making gears and using your lathe for many tasks.

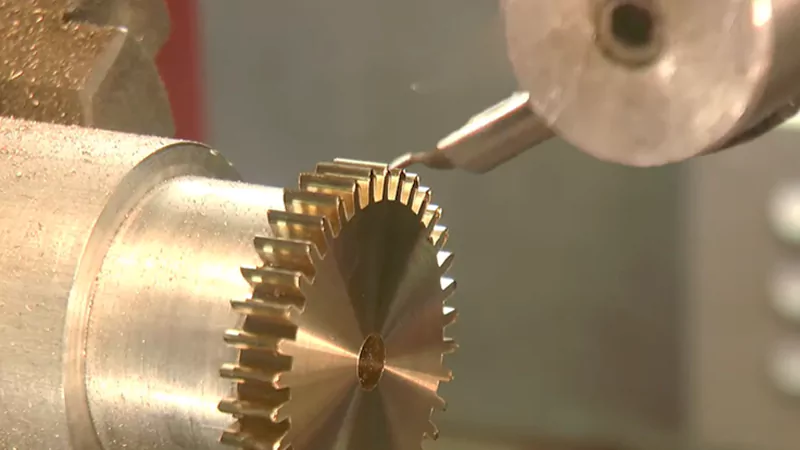

How Gear Cutting on a Lathe Works

Gear Cutting Process

When you start gear cutting on a lathe, you use the machine to shape the gear teeth one by one. You mount the gear blank on the lathe spindle. The cutting tool moves in and out to remove small amounts of material. You control the depth and spacing of each tooth. This process is called indexing. You use special attachments, like a dividing head or an indexing plate, to make sure each tooth is spaced evenly.

You can use different machining techniques for gear cutting. Here is a table to help you understand the most common ones:

Tip: For most home workshops, gear milling and shaping are the easiest to set up on a lathe.

Machining Steps

You follow a series of steps when cutting a gear on a lathe:

1. Prepare the gear blank. Make sure it is the right size and shape.
2. Mount the blank securely on the lathe spindle.
3. Set up the cutting tool. Use a single-point tool for most gear cutting jobs.
4. Attach the dividing head or indexing plate. This helps you space the teeth evenly.
5. Begin cutting. Move the tool in and out to form each tooth.
6. Rotate the blank to the next position using the indexing device.
7. Repeat the cutting process until all teeth are formed.
8. Check the gear for accuracy and finish.

Precision matters in gear cutting. You want the teeth to be even and the gear to run smoothly. In many cases, you can achieve tolerances within +/-.005 inches for change gears. With careful setup, some shops keep tolerances within .002 inches.

Note: Tighter tolerances are needed for gears in critical machines, while less critical gears, like those for old equipment, can have looser tolerances.

Key Differences from Other Methods

Gear cutting on a lathe is different from using a milling machine. Here is a table to show the main differences:

You use a lathe mainly for round or cylindrical parts. The cutting tool shapes the gear teeth as the blank spins. Milling machines use a different approach, with the tool spinning and the workpiece moving underneath.

Remember: Gear cutting on a lathe works best for simple gears, like spur gears. For more complex shapes, you may need other machines or attachments.

If you ever wondered, can you make gears on a lathe? Now you know that with the right setup and careful machining, you can create accurate gears for many uses.

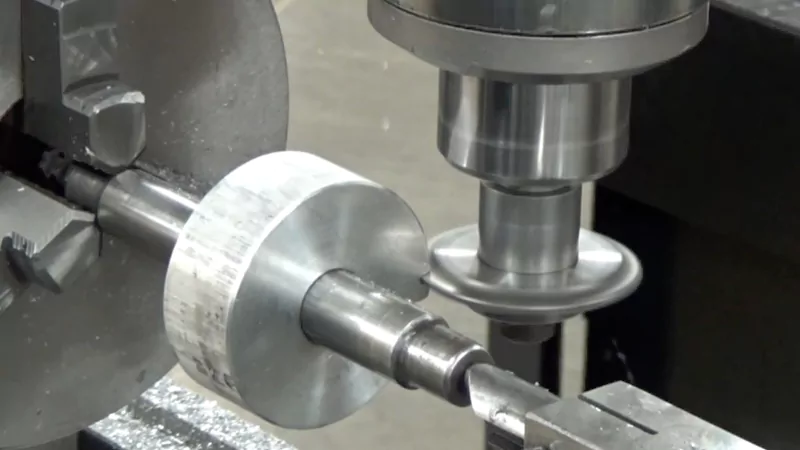

Tools and Attachments for Gear Cutting

Essential Lathe Features

When you want to cut gears on a lathe, ensure your machine has the necessary features. A strong and stable lathe helps you get smooth and accurate results. Look for a lathe with a solid bed and a powerful motor. This gives you the strength to handle tough cutting jobs. You also need a good chunk to hold the gear blank tightly. A steady rest or follow rest can support long pieces and stop them from bending during cutting.

Here are some common attachments you might use for gear cutting:

• Gear cutting attachment: This tool is made just for cutting gears. It helps you shape each tooth with precision.
• Milling attachment: This lets you do milling operations on your lathe, which is useful for making gear teeth.
• Grinding attachment: You can use this for finishing the gear teeth and getting a smooth surface.
• Thread chasing dials: These help you cut threads accurately, which is important for some gear designs.
• Taper turning attachment: This lets you cut tapers, which you might need for special gear shapes.

Tip: Always check that your lathe and attachments are set up correctly before you start cutting. This helps you avoid mistakes and keeps you safe.

Milling Attachments

A milling attachment turns your lathe into a small milling machine. You can use it to cut slots, grooves, and even gear teeth. The milling attachment holds the cutter and moves it across the gear blank. This is very helpful when you need to use gear cutters to shape each tooth. You can use different types of gear cutters depending on the size and shape of the gear you want to make.

Here is a simple table to show how milling attachments help with gear cutting:

You can switch out gear cutters to match the number of teeth or the type of gear you need. This makes your lathe very flexible for different gear cutting jobs.

Dividing Heads and Indexing

Dividing heads and indexing attachments are key tools for making sure each gear tooth is spaced perfectly. You use these devices to rotate the gear blank by a set amount after each cut. This way, every tooth is the same size and distance apart. Dividing heads use worm gears and special indexing plates to set the angle for each cut. The accuracy of your dividing head or indexing attachment has a big effect on the final gear.

When you use a dividing head, you set the number of divisions to match the number of teeth you want. After you cut one tooth, you turn the dividing head to the next position and repeat the process. This method helps you get high precision in your gear cutting. If your dividing head is in good condition and set up right, you can make gears that run smoothly and last a long time.

Note: Always keep your dividing head clean and well-oiled. This keeps your gear cutting accurate and your lathe running well.

Gear Cutters and Materials

When you start making gears on a lathe, you need to choose the right gear cutters and materials. The gear cutters shape each tooth, so picking the right one is important for accuracy and smooth operation. You will find that gear cutters come in different shapes and sizes. Each type matches a specific gear size and tooth profile. For most projects, you use form gear cutters, which match the shape of the gear tooth you want to create. These cutters are made from high-speed steel or carbide, which helps them stay sharp and cut cleanly.

You also need to think about the material for your gear blank. The material you pick changes how you use the lathe and the gear cutters. Here are some common materials you might use:

• Steel: This is strong and durable. You use it for gears that need to handle heavy loads or last a long time. When you cut steel, you need to go slower to keep the cutter cool and prevent damage.
• Brass: This material is easy to machine and resists rust. You might use it for lighter-duty gears or when you want a gear that runs quietly. Brass lets you cut faster, and the gear cutters last longer.
• Engineered Plastics: These are lightweight and reduce noise. You often use them in places where you want the gear to run smoothly and quietly. Plastics are easy on the gear cutters, so you can work quickly.

The choice of material affects the whole gear cutting process. Harder materials like steel need slower speeds and more careful cooling. Softer materials like brass or plastic let you work faster and get a smoother finish. The properties of the material also change how precise your gear will be. If you want a gear that fits perfectly and runs smoothly, you must match the right gear cutters to the material.

Here is a table to help you compare the materials:

Tip: Always check that your gear cutters are sharp and match the gear size you want. Dull cutters can ruin your gear and make the lathe work harder.

You will find that using the right gear cutters and materials makes gear cutting on a lathe much easier. With practice, you will learn which combinations give you the best results for your projects.

Step-by-Step Gear Cutting on a Lathe

Planning and Measuring

Before you start cutting, you need a solid plan. Begin by checking the dimensions of your workpiece. Use calipers and micrometers to make sure the blank matches your design. Always check that your measuring tools are clean and calibrated. This step helps you avoid mistakes later.

Next, set the tool height. Adjust the cutting tool so it lines up with the centerline of the spindle. This setup reduces tool stress and gives you a smoother cut. Double-check your measurements. If your workpiece is not within the right tolerance, fix it before moving on.

Tip: Careful planning and measuring save you time and prevent wasted material.

Setting Up the Lathe

A good setup is the key to accurate gear cutting. Start by making sure your lathe is sturdy and all fasteners are tight. Calibrate the machine and align the chuck and spindle. This step keeps your workpiece steady during cutting.

Use a table like the one below to remember best practices:

You should also use micrometer stops for fine adjustments. Keep the setup rigid and stable. If you work with long pieces, support the tailstock to avoid bending. Slow, controlled feeds help you make precise cuts. Select the right tool for the job and keep it sharp. Measure your workpiece often during the process.

Note: A well-set lathe makes the cutting process smoother and more accurate.

Cutting the Gear Teeth

Now you are ready for the main event—cutting the gear teeth. Start by mounting the blank securely. Use the dividing head or indexing plate to space each tooth evenly. Move the cutting tool in and out to shape each tooth. Rotate the blank to the next position and repeat the process.

Watch out for common mistakes. Using the wrong material can cause the gear to wear out quickly. If you pick the wrong tooth profile or number of teeth, the gear may not work as planned. Inaccurate cutting leads to rough or uneven teeth. Always check your work as you go.

Tip: Do not skip quality checks. Inspect each tooth for shape and size before moving on.

Some mistakes happen if you forget to sharpen the hob or set the swivel angle wrong. Too much backlash in the spindle can also ruin the precision of your gear teeth. Take your time and focus on each step.

After you finish cutting, inspect the gear. Look for smooth, even teeth and check the fit. If you want high precision and quality, consider using advanced machining services. These services use modern technology to achieve tight tolerances and excellent surface finishes.

Remember: Careful planning, setup, and cutting give you the best results when making gears on a lathe.

Finishing and Testing

You have finished cutting the gear teeth, but your work is not done yet. The next step is to focus on finishing and testing the gear. This part of the process helps you make sure your gear will work smoothly and last a long time.

Start by removing any sharp edges or burrs left from cutting. You can use a small file, deburring tool, or fine sandpaper. Smooth edges help the gear mesh better with other gears and reduce wear. Take your time with this step. A clean finish makes a big difference in how the gear performs.

After smoothing the teeth, check the gear for accuracy. You want to make sure the gear matches your design and will fit into your machine. Here are some important checks you should do:

• Measure the gear’s dimensions with calipers or micrometers. Check the outside diameter, tooth width, and thickness.
• Inspect the surface finish. Look for rough spots or scratches. A smooth surface helps the gear run quietly and reduces friction.
• Test the gear tooth contact. Use marking compound or engineer’s blue. Coat the teeth, then roll the gear against its mate. The contact pattern shows if the teeth mesh evenly.

If you find any problems, fix them before moving on. Sometimes, you may need to polish the gear teeth or adjust the shape slightly. Small changes can improve how the gear runs.

For gears that need high precision, consider using advanced machining services. Machining with modern equipment, like CNC systems, gives you tight tolerances and a perfect finish. These services can help you achieve the best possible quality, especially for gears used in demanding machines.

Once you finish testing, clean the gear. Remove any dust, oil, or leftover compound. A clean gear is ready for assembly and will last longer.

Tip: Always keep records of your measurements and test results. This helps you track your progress and improve your skills over time.

You have now completed the gear cutting process on your lathe. With careful finishing and testing, you can trust that your gear will perform well in your project. Practice these steps each time you make a gear, and you will see your results improve.

Types of Gears You Can Make

When you use a lathe for gear making, you have several options. Some gears are easy to make, while others have more challenges. Let’s look at the main types you can create and where you might run into limits.

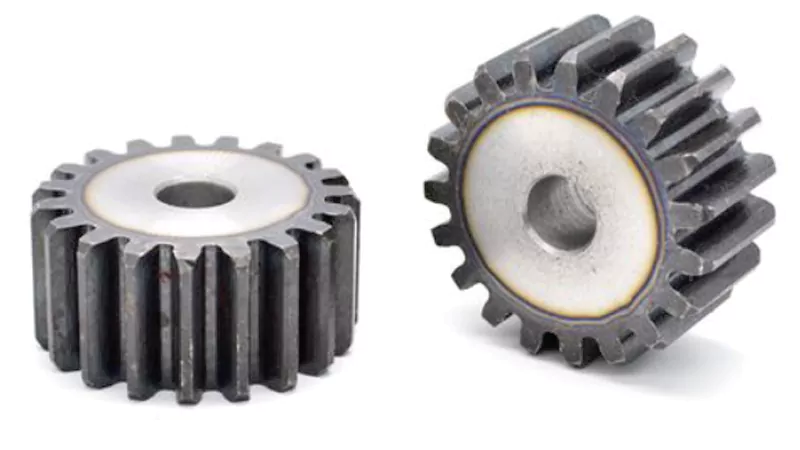

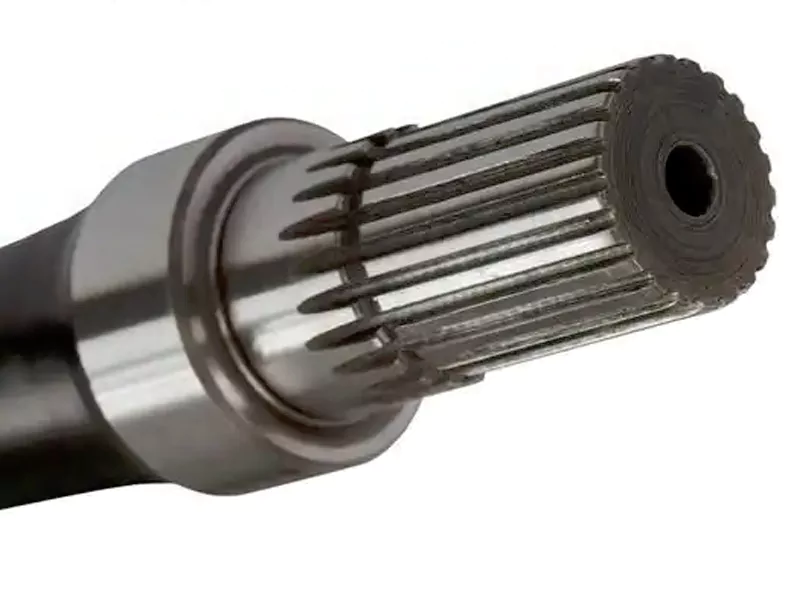

Spur Gears

Spur gears are the most common type you can make on a lathe. These gears have straight teeth and are used in many machines. You can cut spur gears by setting up your dividing head and using a form cutter or milling attachment. The process is straightforward and works well for most home or small shop projects.

• You can use gear hobbing for large batches of standard gears. This method works well on CNC lathes with rotating tools.
• Gear shaving helps you finish the teeth, making them smoother and more accurate.
• Spur gears do not need special angles or complex setups. You can focus on getting the tooth spacing and depth correct.

Tip: If you want to make your first gear, start with a spur gear. The process is simple, and you will learn the basics of gear cutting.

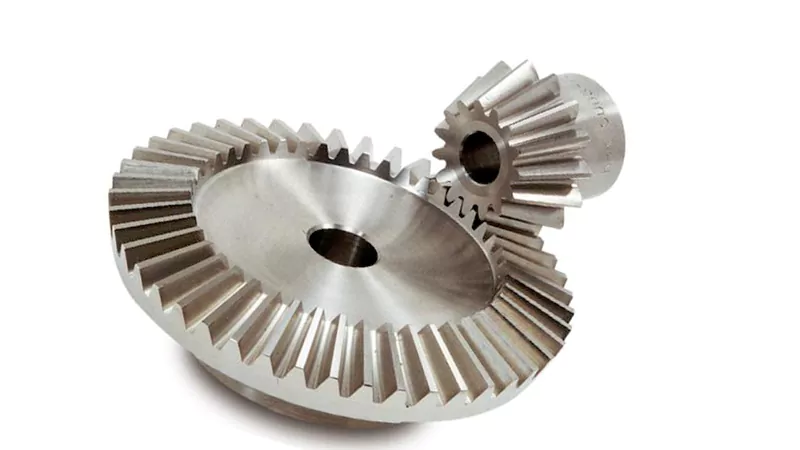

Bevel Gears

Bevel gears have angled teeth and are used to change the direction of motion. Making bevel gears on a lathe is possible, but it takes more steps and careful setup.

1. You need to create the gear blank with the correct angle. This step uses the compound slide or a rotated headstock.
2. Cutting the teeth often means moving the blank to a mill with a dividing head. You must make extra passes to shape the flanks, since the tooth size changes across the gear.
3. After cutting, you return the gear to the lathe for parting off. The process has more steps than spur gears, but you can still do it with patience.

Note: Bevel gears require more skill and setup time. If you want to try making one, plan for extra measuring and careful adjustments.

Limitations for Helical and Worm Gears

Some gear types are much harder to make on a lathe. Helical and worm gears have special shapes that need advanced setups.

You can try to make these gears, but the results may not be as precise or efficient as with other methods.

Tip: For helical or worm gears, consider using a specialized machine or advanced CNC technology if you need high accuracy.

How Machining Technology Expands Your Options

Modern machining technology lets you make more types of gears with better results. Here’s how:

1. High precision CNC lathes help you reach tight tolerances, sometimes as close as ±0.0001 inches.
2. These machines let you create complex shapes and gear profiles that are hard to do by hand.
3. You can produce a wider range of gears for different industries, like aerospace or automotive, where exact sizes matter.

Note: If you want to make gears for demanding uses, look for a CNC lathe or advanced machining service. These tools open up new possibilities and help you meet strict requirements.

You can make many types of gears on a lathe, especially with the right tools and technology. Start with spur gears, try bevel gears as you gain skill, and use advanced machines for more complex shapes.

Challenges and Tips for Gear Cutting

Precision and Accuracy

When you cut gears, precision matters. Small mistakes can cause the gear to run poorly or even fail. You face several common challenges when aiming for accuracy:

• Workholding can be tricky. You need to grip the gear blank tightly and keep it rigid. If the blank moves, the teeth will not line up.
• Choosing the right tool is important. The shape and angle of your cutting tool affect the finish. Some tools, like wiper inserts, give a smoother surface but may cause vibration.
• Surface finish is another concern. A rough finish can make the gear noisy or wear out faster.
• Chatter is a big problem. It happens when the tool or workpiece vibrates. Chatter can ruin the tooth shape and make the gear weak. You can prevent chatter by using the correct speed, feed, and keeping everything tight.

Tip: Always check your setup before you start. A solid setup helps you avoid most precision problems.

Size and Complexity

The size and shape of the gear change how hard it is to cut. Here are some things you should watch for:

• Bigger gears need deeper cuts and wider teeth. This puts more stress on your tools and your machine.
• Gears with fewer teeth are harder to cut. You must make careful cuts to get a smooth tooth shape.
• The angle of your cutting tool changes the depth of each cut. If you want special tooth angles, you need to adjust your setup.
• Complex gears take more time and skill. Each extra feature adds a new challenge.

If you try to cut a large or complex gear, plan your steps. Take your time and check your work often.

Time and Skill Level

Gear cutting is not a beginner task. You need some basic skills before you try it. Here are some tips to help you get ready:

• Start with simple projects. Practice turning and facing before you try to cut gears.
• Build your skills with beginner exercises. Learn how to measure, set up your tools, and use your lathe safely.
• Take your time. Rushing leads to mistakes. Go slow and check your progress often.
• If you are new, ask for help or watch videos. Seeing someone else do it can make things clearer.

Note: You do not need to be an expert to start, but you should feel comfortable with your machine and tools.

With patience and practice, you will improve your gear cutting skills. Each project teaches you something new. Over time, you will find that even complex gears become easier to make.

Practical Tips for Success

Cutting gears on a lathe can seem hard at first. But you can do better if you follow some helpful habits and tricks. Here are some easy tips to help you get good results:

• Choose a stable lathe: Pick a CNC lathe or a manual lathe that works well. Make sure the slides are solid. A strong machine gives you smoother cuts and better accuracy.
• Secure your workpiece: Always use good workholding tools. Keep the gear blank close to the chuck. This stops shaking and helps you cut more precisely.
• Inspect your tools: Look at the insert pocket before each job. Check for wear or damage. Clean the tool body and put grease on the moving parts. If a tool is too worn, replace it.
• Use the right cutting tools: Pick modern tools like carbide, ceramic, or diamond-coated ones. These tools last longer and cut through tough materials better.
• Set the best cutting parameters: Change the speed, feed rate, and depth of cut for your material. Try different feed rates or step-over moves to keep your tools sharp and your cuts accurate.
• Keep your workspace clean: A clean area helps you avoid mistakes. It also keeps your machine working well.
• Plan tool changes: Change tools when they start to wear out, not just when they break. This keeps your work steady and stops sudden problems.
• Train regularly: Keep learning new skills and ways to work. Training helps you work faster and make fewer mistakes.

Tip: Try minimum quantity lubrication (MQL) to keep your tools cool and slippery. This uses less coolant but still protects your tools and gives a better finish.

You can also use advanced machining to fix common problems. For example, heat treatment like quenching and tempering makes gears stronger and tougher. This is important if your gear will carry heavy loads or face a lot of stress.

Here is a quick table to help you remember key habits:

Gear cutting gets easier as you practice more. Start with simple projects and build your skills slowly. After each gear, think about what went well and what you can do better. With time, you will feel more sure of yourself and work faster.

You now know the answer to can you make gears on a lathe? With the right tools and know-how, you can create gears for many projects. Start with simple gear cutting projects and use machining for the best results. Remember these important tips: keep your tools clean and sharp, use higher speeds, apply enough lubrication, and feed slowly for smooth chips. If you want to learn more, check out resources like video guides on attachments or downloadable plans. Practice with scrap material, join a community, and ask questions. Can you make gears on a lathe? Yes, you can. Patience and practice will help you master this skill.
