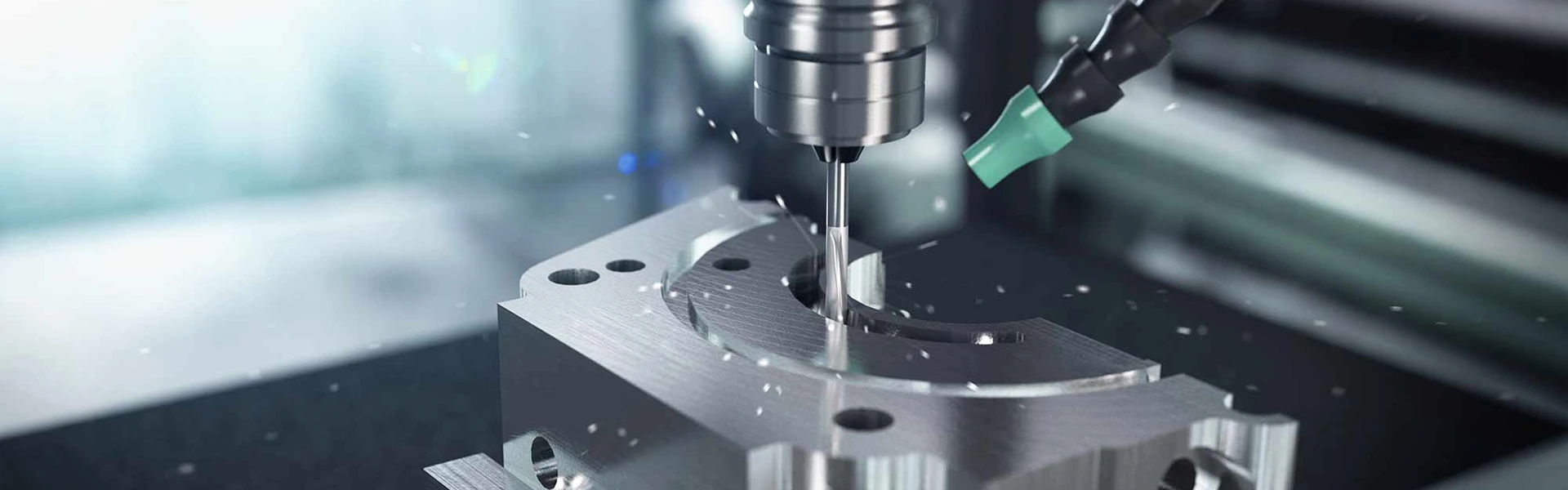

Custom CNC Milling Service
Whether you are looking for a custom CNC milling parts for a brand or are just looking for a professional CNC milling manufacturer, AFI Industrial Co., Ltd. is your first choice.
Get A Quick ReplyHigh Quality Rapid CNC Milling Service
AFI Parts integrates seamlessly with over 10,000 qualified manufacturing partners, including US-based ITAR-qualified and AS9100D-registered CNC milling facilities. That massive network means that whatever your part, we have a shop and machine to make it. We support 3-axis, 4-axis, 5-axis, and right-angle milling capabilities to help you rapidly create designs from simple straight lines to complex geometric shapes.
AFI Parts offers instant pricing, on-demand lead times, and design-for-manufacturability feedback on materials and manufacturing processes for your custom CNC-milled parts, regardless of industry. Get your instant quote today. The price of your milled prototypes includes tariffs and shipping for standard parcels.
Custom CNC Machining Materials
Materials Available at AFI Parts
| Aluminum | Bronze/Brass | Copper | Plastics | Steel / Titanium / Zinc |
|---|---|---|---|---|
| Aluminum 5052 | Brass C360 | EPT Copper C110 | ABS | Alloy Steel 4130, 4140 |
| Aluminum 7075 & 7075-T6 | Brass 260 | Copper 101 | Acetal [Delrin] | ASTM A36 |
| Aluminum 6063-T5 | C932 M07 Bearing Bronze | Acrylic | Stainless Steel 15-5, 17-4, 18-8, 303 | |
| Aluminum 7050-T7451 | G-10 Garolite | Stainless Steel 303, 304, 316/316L | ||
| Aluminum MIC-6 | Nylon 6/6 | Stainless Steel 416, 420 | ||
| Aluminum 6061-T6 | PEEK | Steel, Low Carbon | ||
| Aluminum 2024-T3 | Polycarbonate | Steel A36 | ||

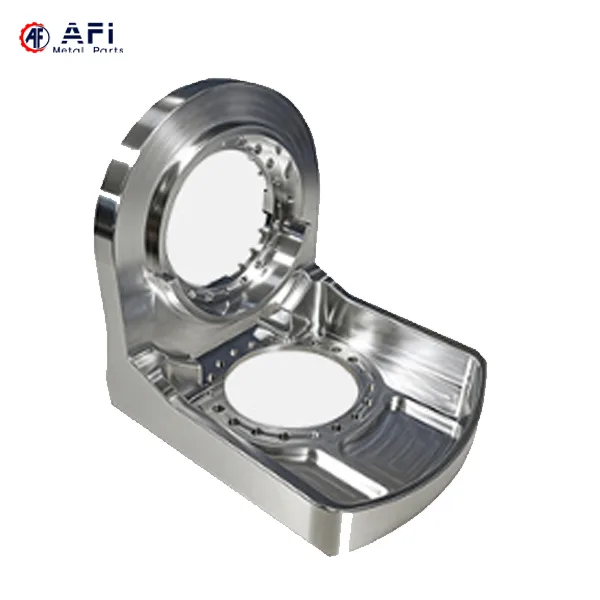

| PTFE [Teflon] | Titanium Grade 2, Titanium 6Al-4V, Zinc Sheet Alloy 500 | |||
| Polypropylene | ||||
| Ultra-High Molecular Weight Polyethylene |
Custom Sourced Materials
A variety of custom CNC milled parts, including metal and plastic, options are available for an instant online quote. If you do not see the material stock you are looking for, please choose “Other” under the material drop-down on your quote page and submit for an expert engineering review once you have specified features, tolerances, inspection needs, and quantities required.
Available Finishes
The finish option with the quickest turnaround. Parts are left with visible tool marks and potentially sharp edges and burrs, which can be removed upon request. Surface finish is comparable to 125 uin Ra finish.

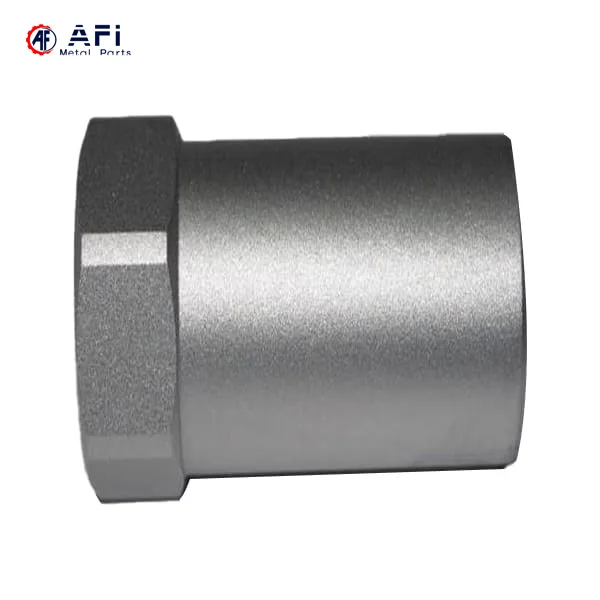

The part surface is media blasted, typically using glass bead, to produce a smooth, matte appearance.

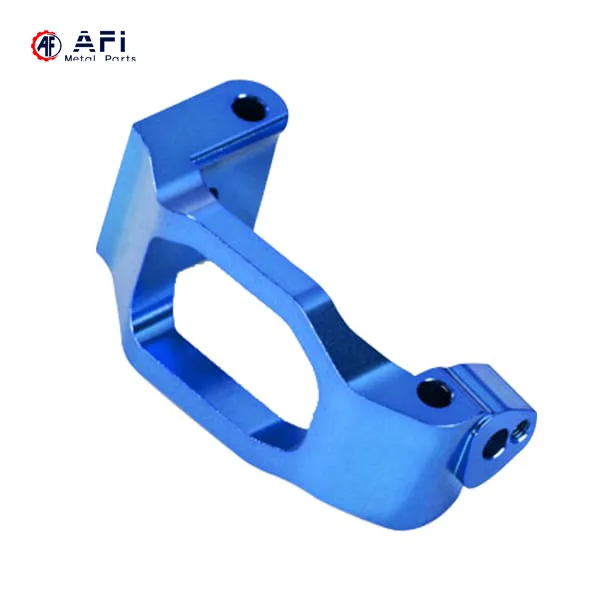

Type II creates a corrosion-resistant finish. Parts can be anodized in different colors—clear, black, red, and gold are most common—and is usually associated with aluminum. Type III is thicker and creates a wear-resistant layer in addition to the corrosion resistance seen with Type II.

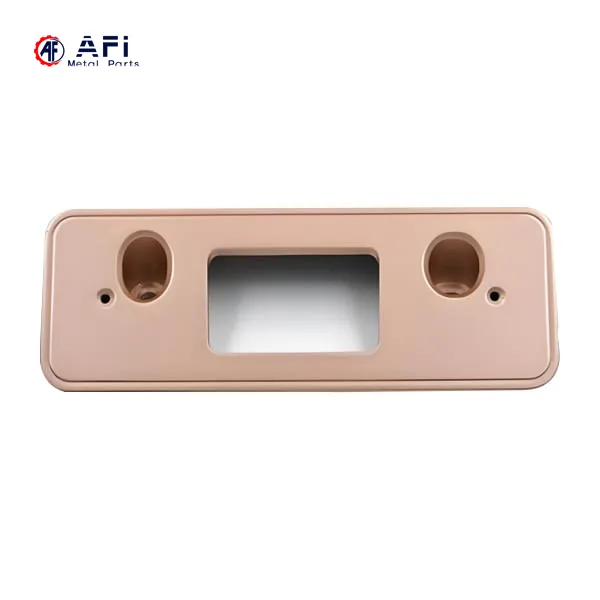

This is a process where powdered paint is sprayed onto a part which is then baked in an oven. This creates a strong, wear- and corrosion-resistant layer that is more durable than standard painting methods. A wide variety of colors are available to create the desired aesthetic.
Don’t see the finish you need? Submit an RFQ and we’ll look into a finishing process for you.
Ready to get started on your CNC milling quote?
Free shipping available for domestic CNC machining orders!
Get Your Instant QuoteApplications of CNC Milling
Rapid Tooling
Because CNC can be applied to virtually any material, it is perfect for rapid tooling, i.e., creating fixtures or molds.
Rapid Prototyping
The range of materials available, low CNC machining costs per unit, and speed of production makes CNC a great option for prototyping.
End-Use Production
High-quality finish, vast material options and precise tolerances have made CNC a favorable technology for end-use parts.
Advantages of CNC Milling
Using the latest CNC machining capabilities, AFI produces highly accurate, quick turn parts in as fast as 1 day. We also instantly quote CNC machined parts, cutting days off of your RFQ process.
Offers high-precision tolerances, including sub +/- 0.001″ tolerances. We are the experts in making parts that are truly custom and ready to use.

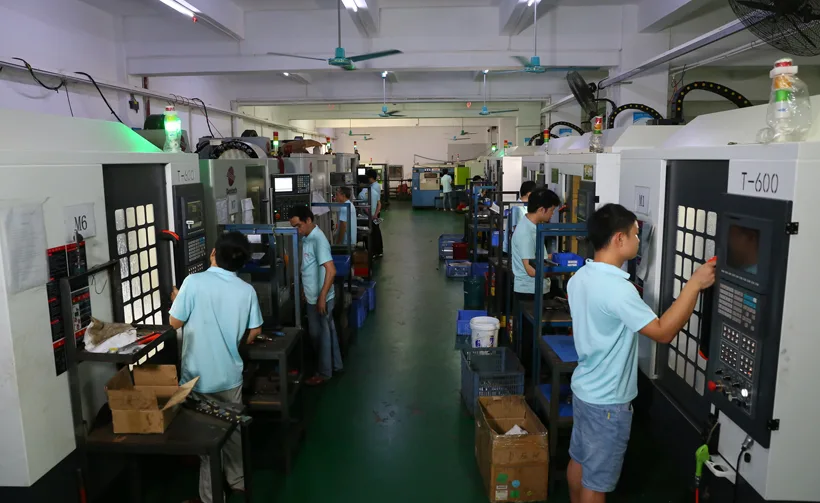

CNC machining processes are perfect for prototyping and production CNC parts. AFI’s massive scale can help you scale up from testing phase to production runs of 100,000 parts of more.
Choose from over 50 metal and plastic materials. CNC Machines offer a wide variety of certified materials.
CNC Milling Tolerances & Standards
| Description | General Tolerance or Standard |
|---|---|
| Maximum Part Size | Milled parts up to 80” x 48” x 24” (2,032 x 1,219 x 610 mm). |
| Distance Dimensions | For features of size (Length, width, height, diameter) and location (position, concentricity, symmetry) +/- 0.005”. |
| Orientation and Form Dimensions | 0-12″ +/- 0.005″, Angularity 1/2 degree. For 24″ and beyond please consult AFI’s Manufacturing Standards. |
| Precision Tolerances | AFI Parts can manufacture and inspect to tight tolerances, including sub +/- 0.001″ tolerances, per your drawing specifications and GD&T callouts. |
| Minimum Feature Size | 0.020” (0.50 mm). This may vary depending on part geometry and chosen material. |
| Threads and Tapped Holes | AFI Parts can accommodate any standard thread size. We can also machine custom threads; these will require a manual quote review. |
| Surface Finish | The standard finish is as-machined: 125 Ra or better. Additional finishing options can be specified when getting a quote. |
| Edge Condition | Sharp edges will be broken and deburred by default. Critical edges that must be left sharp should be noted and specified on a print. |
What is CNC Milling?

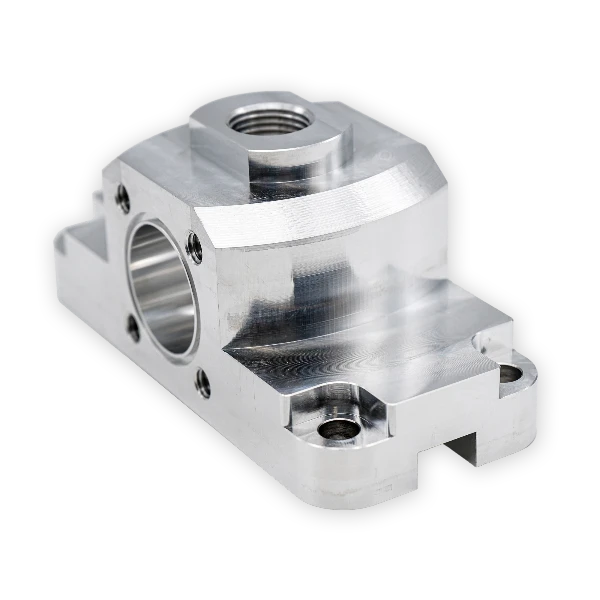

The Basics Of CNC Mills

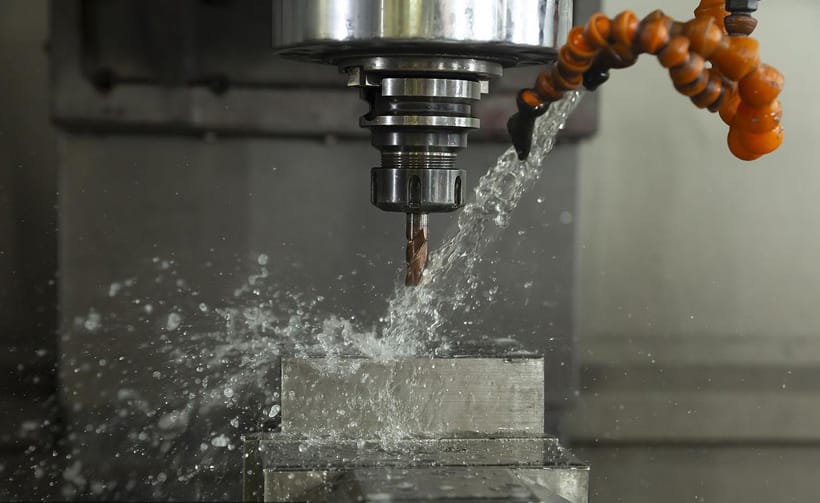

CNC mills are automated cutting machines using a rotating spindle-head to cut away unwanted material. CNC milling machines come in a variety of sizes and different axis configurations. This manufacturing process is mainly utilized to cut harder metals but can work with workpiece materials ranging from plastic and aluminum to stainless steel and titanium.

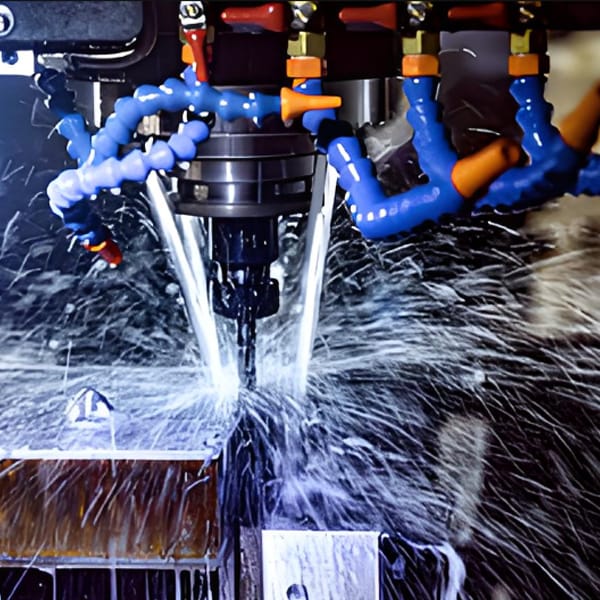

How CNC Milling Works
CNC mills excel at profile cutting harder materials. Like all CNC machines, a CNC mill is controlled with G-Code created through CAM software. The Gg-Code instructs the machine where to move the tool head, how fast to spin the tool, how deep to cut, how to move the workpiece, and other factors relating to speed, feed rate, and coordination. The G-Code complexity depends on how many axes the milling machine has.
Mills can still be used for profile cutting of softer materials, but are not as cost-effective for that use as CNC routers. The main difference between these machines is that with a CNC router the workpiece remains stationary while the router cutting head is directed around the piece, while a CNC mill may move both tool head and workpiece. CNC mills are mainly used in industrial manufacturing, while CNC routing is more common for lower output manufacturing like woodworking.
Types of CNC Mills
The most widely used type of CNC milling machine. The full use of the X, Y, and Z directions makes a 3 Axis CNC mill useful for a wide variety of work.
This type of router allows the machine to rotate on a vertical axis, moving the workpiece to introduce more continuous machining.
These machines have three traditional axes as well as two additional rotary axes. A 5-axis CNC router is, therefore, able to machine 5 sides of a workpiece at in one machine without having to remove the workpiece and reset. The workpiece rotates, and the spindle head is able to also move around the piece. These are larger and more expensive.

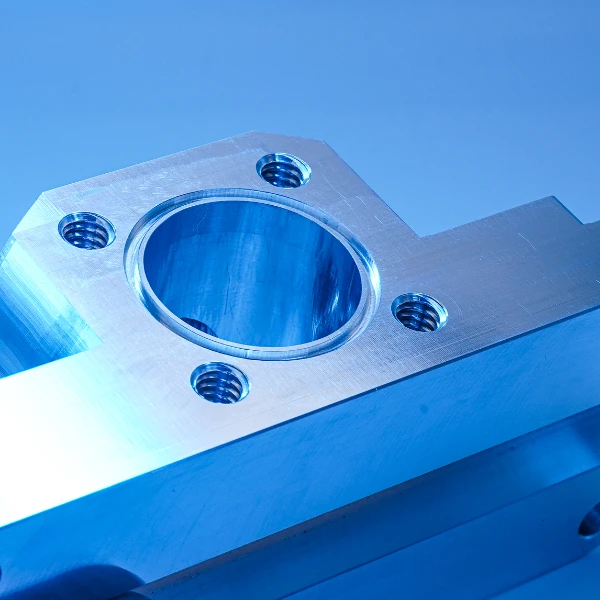

Other Benefits Of CNC Mill Machining Processes
CNC milling machines are built for precise manufacturing and repeatability which makes them perfect for rapid prototyping and low-to-high volume production runs. CNC mills can also work with a variety of materials from basic aluminum and plastics to more exotic ones like titanium — making them the ideal machine for almost any job.
CNC Turning Video
Why Choose AFI Patrs for Custom Milling?
Endless Options
Choose from millions of possible combinations of materials, finishes, tolerances, markings, and certifications for your order.
Easy to Use
Get your parts delivered right to your door without the hassle of sourcing, project management, logistics, or shipping.
Vetted Network
We are ISO 9001:2015, ISO 13485, IATF 16949:2016, and AS9100D certified. Only the top CNC machine shops that apply to become Suppliers make it through our qualification process.
